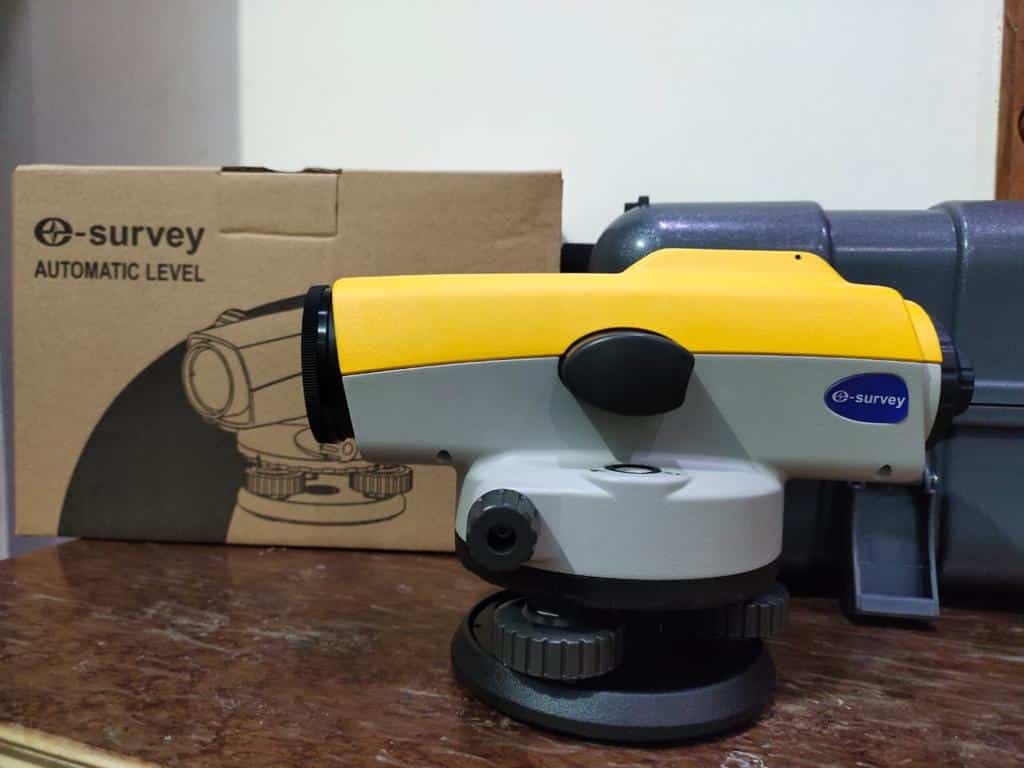

Automatic Level Auto Level
A dumpy level, automatic level, leveling instrument is an optical instrument used to establish or verify points in the same horizontal plane. It is used in surveying and building with a vertical staff to measure height differences and to transfer, measure and set heights.
| Accuracy (per double km run) | ±1.0mm |
|---|---|
| Magnification | 32x |
| Telescope | Erect |
| Objective Aperture | 40mm |
| Focusing Distance | From 0.5m |
| Multiplication Factor | 100 |
| Additive Factor | 0 |
| Waterproof | Yes |
| Working Range | ±15′ |
| Setting Accuracy | ±0.3″ |
| Bubble Sensitivity | 8′ / 2mm |
| Circle Graduation | 1 Degree |
| Weight | 1.3kg |
| Warranty* | 1 Year RTB |
