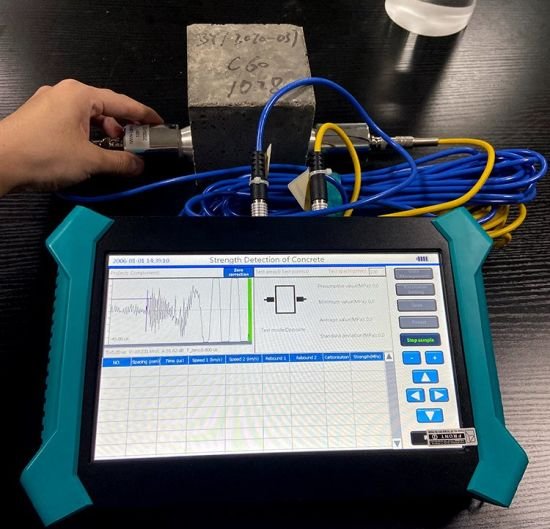

“IWIN” (China) Ultrasonic Pulse Velocity Tester Model U910 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity.It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.

Features

◎ New upgraded wireless cloud transmission function;

◎ Five functions of measuring pile, measuring strength, measuring defect, sounding depth and width measuring;

◎ Stable performance and powerful function, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;

◎ Semi-transparent, high-brightness, TFT color LCD screen;

◎ Full touch screen operation, simple and convenient, stable and reliable;

◎ Large memory capacity and working time of more than 10 hours;

◎ It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound

◎ U-disk transfers data and supports software upgrading through u-disk;

◎ Special analysis software is powerful, data analysis and processing, report generation, and report printing can be completed easily.

Technical Parameter

Product ModelIWIN-U910IWIN-U920
Master control unitBuilt-in A8 industrial control motherboardBuilt-in A8 industrial control motherboard
Display10.1 inch, high brightness, TFT color LCD capacitive screen10.1 inch, high brightness, TFT color LCD capacitive screen
Operational modeTouch screenTouch screen
Storage modeBuilt-in Electronic Hard Disk (> 8GB) +Large Capacity U DiskBuilt-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk
Data transmission modeWireless Cloud Transport (Options)Wireless Cloud Transport (Options)
Acquisition modeSingle-channel manual point-by-point acquisitionManual Point-by-Point Collection of Single and Double Channels
Number of disposable profiles
Channel Number1 transmit + 1 receive1 emission + 2 reception
Trigger modeSignal triggeringSignal triggering
Sampling period (mus)0.05-409.6 Multistage Options0.05-409.6 Multistage Options
Acoustic Time Accuracy (Us)Zero Point Zero FiveZero Point Zero Five
Acoustic time range (mus)16777001677700
Width measurement functionMeasuring range: 0 ~ 10mm;
Measurement accuracy: 0.01 mm;
Measuring range: 0 ~ 10mm;
Measurement accuracy: 0.01 mm;
Dynamic range (dB)One hundred and forty-sixOne hundred and forty-six
Bandwidth (kHz)1~5001~500
Receiving Sensitivity (UV)Less than 10Less than 10
Gain Accuracy (dB)Zero point fiveZero point five
Emission Voltage (V)Sixty-five, 250, 500 and 1000 gears adjustableSixty-five, 250, 500 and 1000 gears adjustable
Communication interfaceUSB, Bluetooth, WifiUSB, Bluetooth, Wifi
Working hours (h)More than 8More than 8
Power supply modeBuilt-in lithium battery
External 220V~16V AC/DC
Built-in lithium battery
External 220V~16V AC/DC
Work environmentTemperature (?) – 10 (?) ~ + 40 (?)
Humidity (RH) < 90%
Temperature (?) – 10 (?) ~ + 40 (?)
Humidity (RH) < 90%
Host Size (mm)300 x 200 x 55300 x 200 x 55
