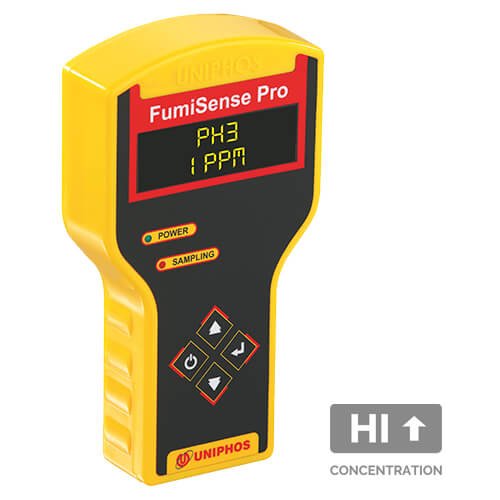

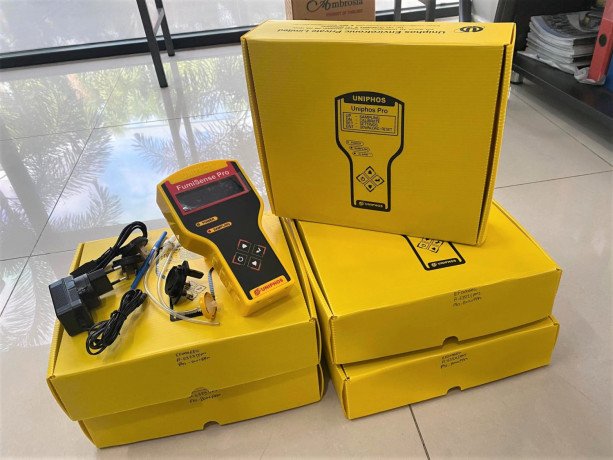

Uniphos FumiSense-Pro PH3-Hi Phosphine Gas Monitor for Fumigation Monitoring applications
GAS RELATED SPECIFICATIONS
Gas Detected: Phosphine (PH3)
Concentration Range: 0 – 2000 ppm
Resolution 1 ppm
Detection Principle Electrochemical Sensor
Accuracy Inherently +/- 2% (but also depends on the accuracy of the calibration gas & method)
Sampling: Internal Sample Draw Diaphragm Pump 300-500 ml/min; Batch &Continuous sampling modes.
DISPLAY & INDICATOR SPECIFICATIONS
Display 20×4 OLED display LEDs indicate status of power & sampling
Function Keys For Increment, Decrement and Setting
Electronic Alarm 85db Audio Alarm, Visual LEDs
ELECTRONICS AND ELECTRICAL SPECIFICATIONS
Electronics : Microprocessor based instrument
Connectivity: Mini USB for PC connectivity
Data Logging : Data logging facility for up to 3000 samples Data logging with user settable features Records gas readings along with time/date
Power Source: 7.4 V/1500 mAH Li-Ion rechargeable battery pack
PHYSICAL SPECIFICATIONS
Operating Temperature Range: 0 to 40 Degree Celcius
Operating Pressure Ambient +/- 10%
Enclosure: ABS Plastic Enclosure
Weight 520 grams
Dimensions H x W x D: 205 x 108 x 38 mm

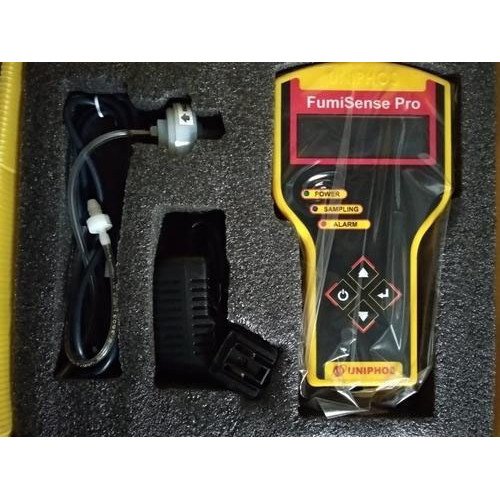

Standard Accessories Sampling Probe with dust filter. Data USB cable
