Handheld XRF Mineral, Precision Metals Alloy Metal Analyzer (All in One)
Parameters
Analytical Method: Energy dispersive X ray fluorescence analytical Method
Elements Measuring Range: Atomic number from 12 to 92 [elements from magnesium (Mg) to uranium (U)] can be measured
Simultaneous detector elements: Simultaneous analyze 40 elements
Microcomputer system: Customized system; : 1G ; System memory: 1G ; extended stored maximum support 32 ; standard 4 for mass storage data
The content range: ppm ~ 99.99%
The detection time: (one second report results)
A built-in system: GPS, WIFI, Bluetooth
Power Supply: Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12
hours; optional is 27000mAh super battery with wide voltage 110 ~ 220 universal adapter for recharging power supply
Detection Objective: Solid, liquid, powder
Detector SDD detector or Fast- detector (optional)
Detector resolution: Minimum reach 128eV
The excitation source: 500KV/2OOuA, silver target end window integrated miniature X-ray tube and high voltage power supply
Collimator and filter: collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
Video system: 500W Pixel high resolution camera
Display Screen: Brand new inch semi-reflecting and semi-transmitting LCD touch screen, resolution 1080*720
Detection limit: The minimum detection limits at ~ 500 ppm
Safety: Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic -turn -off X-Ray tube function. Standard radiation shields, thickened instrument alloy testing wally test instrument
Specialty: Special edition of ore’ analytical software, and intellectualized one- key- testing.
Convenience of Application: No need to select curves, curves, intellectualized one- key-selecting will select, the best matching curve.
Operating ambient humidity <90%
Operating environmental temperature -20 C~+ 50°C
Instrument dimension : 244mm ( Length) x 90mm Width) x mm Height)
Instrument weight 1.7Kg

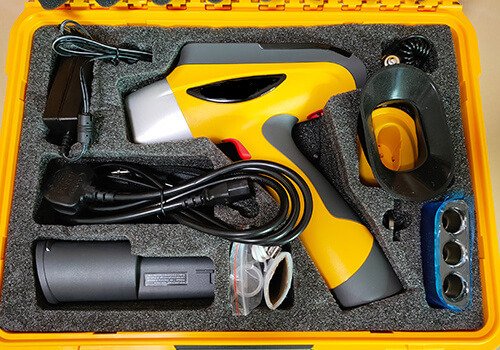

Accessories: Three-military-protection-box is compression, waterproof and absorption. Universal charger and car charger, 4G memory card and card reader, Two lithium battery and charger, PDA accessories, radiation shield.
